# Shopify

**Why this is needed?**

On GUMU™ cloud portal, Shopify is act as a Target as well as source.

**Steps to login Shopify:**

1\. Click on link mentioned below:

&#x20;<https://accounts.shopify.com/store-login>

2\. Login into Shopify using Email address, Password and store name.​

&#x20;

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2F3HksQRs0dQOibrmvjZ8C%2Fimage.png?alt=media&amp;token=f1a7f338-f323-4886-a7a7-2e3ae82a2aa9" alt=""><figcaption></figcaption></figure>

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FIffTY33rP5cTOKodRkx2%2Fimage.png?alt=media&amp;token=37b9f0eb-cf04-4224-b031-25f75cbcca28" alt=""><figcaption></figcaption></figure>

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FJGs14NaCtLQtUmaSOGc3%2Fimage.png?alt=media&amp;token=255c5dea-ac3a-498e-8fa3-452c94c82dea" alt=""><figcaption></figcaption></figure>

For configuration of the store:

Navigation path: Shopify > Go to Apps > Click on Manage private apps

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FZQWaUbcdRir8J4f2HlWV%2Fimage.png?alt=media&amp;token=5fbeb864-9748-4f21-8b34-152a528cd715" alt=""><figcaption></figcaption></figure>

a) Click on Enable private app development

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2Fweb2q5Zup8zNFcTZYYty%2Fimage.png?alt=media&amp;token=c093d7b5-d25b-460f-b3cc-98c58ad4b461" alt=""><figcaption></figcaption></figure>

b) Check all the checkbox and Click on Enable private app development as shown in below image

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2F4zkme4brVK9jetVzFvSP%2Fimage.png?alt=media&amp;token=c1ef9d99-967d-4e74-a624-fa77cab72da2" alt=""><figcaption></figcaption></figure>

c) Enter the private app name and emergency developer email.

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FeQBJMDqqjFGFMFOJD1v5%2Fimage.png?alt=media&amp;token=885a0321-4598-4b3c-af7a-c757df066987" alt=""><figcaption></figcaption></figure>

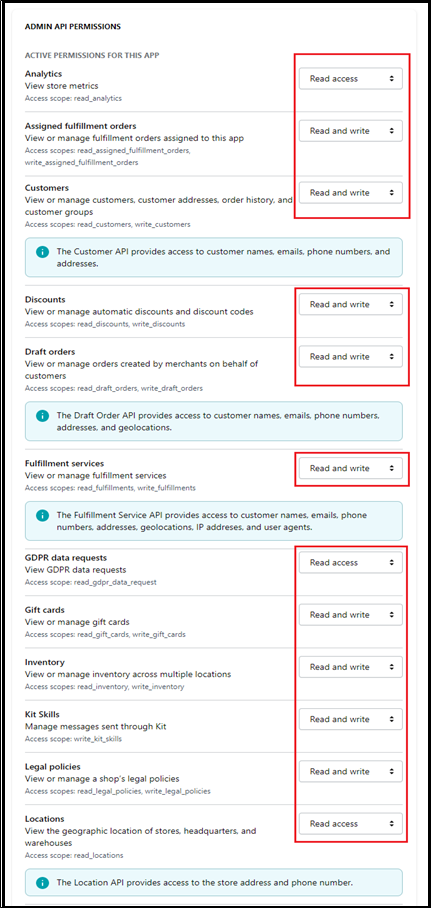

d) Select all of the Admin API permissions and assign access as shown in below images.

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2Fdb8TO5Bk7tQCKO3xTAyk%2Fimage.png?alt=media&amp;token=96799a5a-4706-4736-b18b-14b2adc3fd13" alt=""><figcaption></figcaption></figure>

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FWLYh0RwyZNkw9vLJzCyc%2Fimage.png?alt=media&amp;token=cd5977e4-ba8c-4573-a7b6-776207ef8c9b" alt=""><figcaption></figcaption></figure>

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FKYr9tWSidwV7SPMBcPay%2Fimage.png?alt=media&amp;token=3ea55d94-0f57-465c-8ecf-2caab70aa68c" alt=""><figcaption></figcaption></figure>

e) Select the latest version of API and check all the Storefront API permissions. Click on Save

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FZEqu1AP70RMw4YGgrHrg%2Fimage.png?alt=media&amp;token=705024e8-df44-4171-8f79-31e62895274d" alt=""><figcaption></figcaption></figure>

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FAECcdH7OfwgQCDlQQdGj%2Fimage.png?alt=media&amp;token=9c4bfda6-d9ef-467a-9ea1-5231ce306ae1" alt=""><figcaption></figcaption></figure>

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FDUERzgGKu1t5AhEoDTLZ%2Fimage.png?alt=media&amp;token=bc143f76-0903-44ce-94d2-852013bb2ef9" alt=""><figcaption></figcaption></figure>

**Note**: Once App created successfully, Go to Apps > Click on Manage private apps > Click on the private app name.

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2F8K5qwbuci7sW3hOPotZa%2Fimage.png?alt=media&amp;token=2113ed83-27f9-4308-a5c3-387270ddb1ec" alt=""><figcaption></figcaption></figure>

The highlighted fields (Webservice Url, Store Name, API version, API password, and API key) are used while configuring the Shopify Connection information in the integration configuration on the Gumu portal.

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FCaIhbPDHzscc9UwraNMb%2Fimage.png?alt=media&amp;token=7579cb7f-e12c-44cd-8d58-73e2b01680d1" alt=""><figcaption></figcaption></figure>

For configuration of shopify, go to settings:

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FzsJKbVfsblQ0dUp3PFPJ%2Fimage.png?alt=media&amp;token=af59ab92-e0fb-4389-bdd6-4651d6ab91cf" alt=""><figcaption></figcaption></figure>

**General**: All the information is filled while creating the Shopify Account.

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FI60m0F8micVT5jakz8bH%2Fimage.png?alt=media&amp;token=84b5402f-8227-400a-9200-f40413cdc36b" alt=""><figcaption></figcaption></figure>

**Location**: Shopify Location name should be same as given in the Sage 100 Warehouse i.e. Combine the (Warehouse ID - Name) as shown in the below image. You can add more than one location.

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FzkVxhpWikF7ETaaIACsp%2Fimage.png?alt=media&amp;token=9aee7708-2f06-4dc5-a792-6de51a6b7742" alt=""><figcaption></figcaption></figure>

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FTo2uR45xqfJHfe4jDUqF%2Fimage.png?alt=media&amp;token=84127ec3-73b3-40cd-874f-92ad40e106ca" alt=""><figcaption></figcaption></figure>

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2F7zfNawa6y80LpzOC4ntb%2Fimage.png?alt=media&amp;token=5d2ae349-f1fb-4d9b-a204-a77fcfbf4d83" alt=""><figcaption></figcaption></figure>

**Sage x3 Location (Warehouse) - Navigation path:** I Setup -> Organizational structure -> Sites

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FdCPxhyE3Gj6S7g3k3YwC%2Fimage.png?alt=media&amp;token=38c63d39-d463-49ec-94f5-d40f59491088" alt=""><figcaption></figcaption></figure>

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FhCNMeCG9Kg15mSOUjthl%2Fimage.png?alt=media&amp;token=6c818403-bb57-42f3-b4ca-5fa3dc158887" alt=""><figcaption></figcaption></figure>

**3. Taxes**: Shopify will calculate its own tax according to the State selection. Selection of State and Sales tax id should be same in both Sage 100 and Shopify.

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2F5W6OteO2kwx29E6nV44Z%2Fimage.png?alt=media&amp;token=e67bce23-50c3-420c-995f-ce8ff3467a54" alt=""><figcaption></figcaption></figure>

<figure><img src="https://794987320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MCRVg-TYx3gVa2Tqtf_%2Fuploads%2FXi3Kt1uWVXXqxEs9jF73%2Fimage.png?alt=media&amp;token=f3769488-f20a-4fe1-b4ea-62d518895495" alt=""><figcaption></figcaption></figure>
